HVLS Fan

Reduce Energy Costs with High Volume Low Speed Fans

View Brochure
  • Double Pivot Adjustable Mount
  • Secure Safety Cable
  • Direct Drive Permanent Magnet AC Motor or Gear Reducer AC Motor
  • Secure Hook for Hub
  • Secure Safety Joints
  • Fan Hub and Bottom Cover
  • Aerodynamic Aluminium Blades

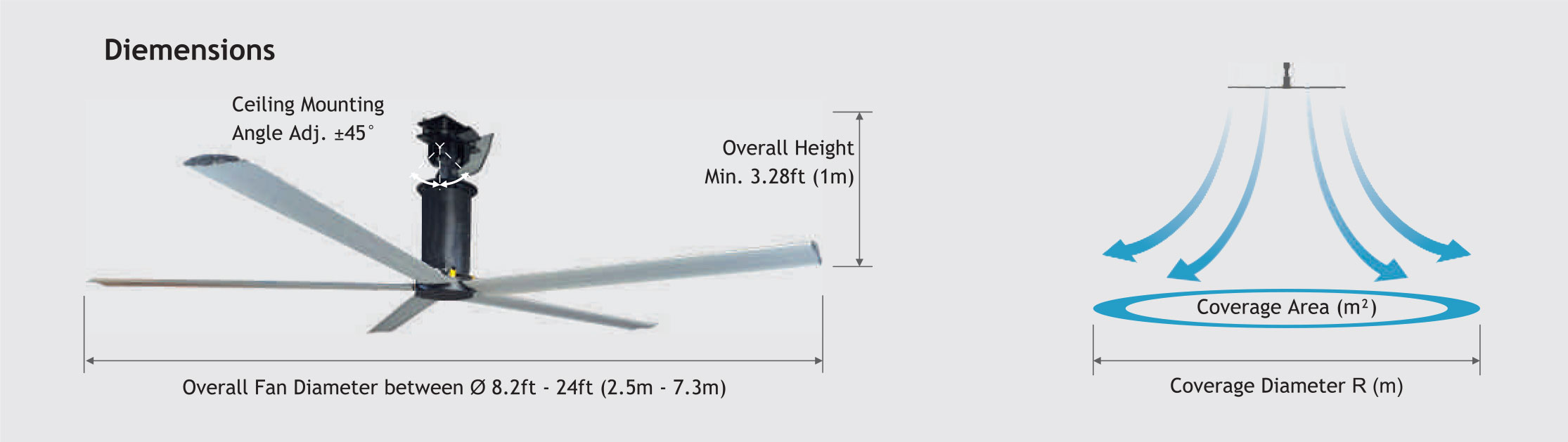

Technical Specifications ( Gear Reducer AC Motor)



Model No Fan Diameter Maximum Speed Motor Speed Motor Power Maximum Speed
Power Consumtion		 Airflow Coverage Area Coverage Diameter Weight
Ft (Mtr) RPM Kw Kwh Amps m3/s m2 R (Mtr) Kg
Aircone HVLS 8 8 Ft (2.44 m) 44 1.1 0.6 4.6 26 370 22 88
Aircone HVLS 10 10 Ft (3.05 m) 94 1.1 0.7 4.6 44 615 28 93
Aircone HVLS 12 12 Ft (3.66 m) 94 1.1 0.9 4.6 53 810 32 98
Aircone HVLS 16 16 Ft (4.88 m) 66 1.5 1.2 8.9 74 1100 37 118
Aircone HVLS 20 20 Ft (6.10 m) 66 1.5 1.3 8.9 109 1495 44 133
Aircone HVLS 24 24 Ft (7.32 m) 66 1.5 1.3 8.9 169 2060 51 143

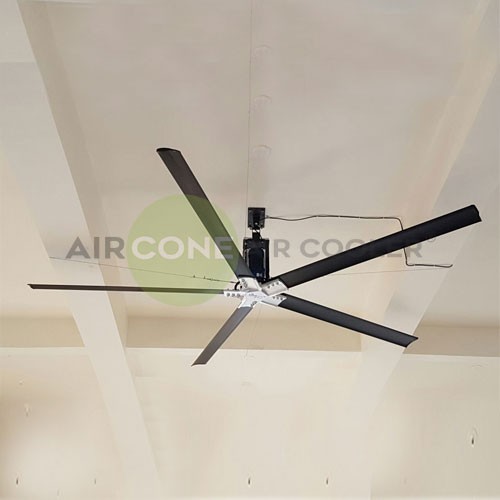

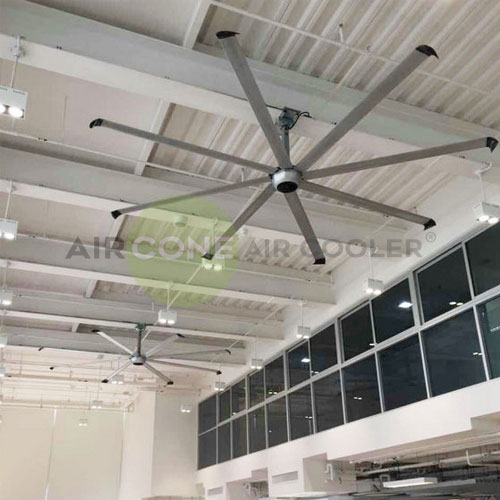

Application
